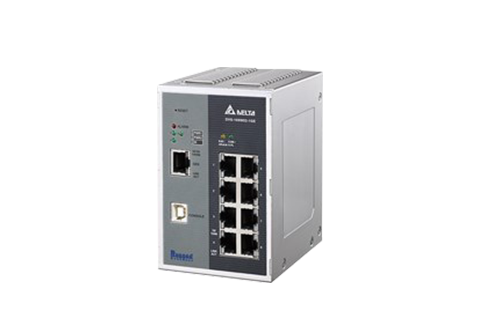

DVS-109

● 8 FE ports + 1 GbE port, Gigabit uplink port can increase transmission bandwidth

● Complete L2 network management functions: VLAN, QoS, LACP, IGMP and SNMP v1 / v2c / v3, etc.

● IPv6 network address and neighbor node discovery, convenient for use in large network architecture

● Support SCADA or other industrial equipment, management and monitoring with Modbus TCP & EtherNet/IP protocol

● ONE RING and ONE CHAIN unique high-level redundant multi-ring network technology, network disconnection self-healing time is less than 20 ms,

to ensure network transmission reliability

● Loopback-detection prevents network loop storms from paralyzing the network, and automatically closes the connection port where the network loop occurs

● Automatic alarm notification, which can be issued via email, DI, relay output, Syslog and SNMP trap

● IP40 housing design, -40˚C ~ 75˚C operating temperature

● UL 508, IEC 61131-2, CE, FCC and RCM and other international safety certifications
