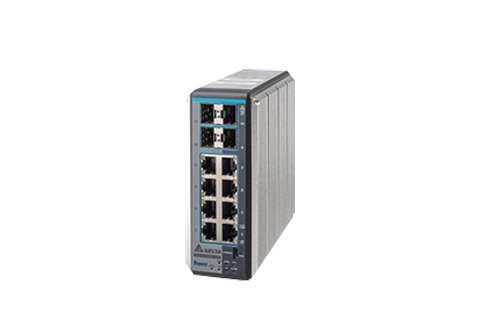

DVS-G112

● Full Gigabit design, 8-port GbE + 4-port GbE SFP, designed for IIoT backbone network transmission

● Complete L2 network management functions: Q-in-Q VLAN, QoS, LACP, IGMP and SNMP v1 / v2c / v3, etc.

● IPv6 network address and adjacent node discovery, convenient for use in large network architecture

● Support SCADA or other industrial equipment, management and monitoring with Modbus TCP & EtherNet/IP protocol

● Redundant ring network technology upgraded again, ONE RING Plus and ONE CHAIN Plus unique high-level redundant multi-ring network technology,

Network disconnection self-healing time is less than 10 ms, greatly improving network transmission reliability

● Advanced network security mechanism: IEEE 802.1X, TACACS+, SSH, HTTPS and SNMP v3

● Loopback-detection prevents network loop storms from paralyzing the network and automatically closes the connection port where the network loop occurs

● SFP fiber module DDM Diagnostic function

● Automatic alarm notification, which can be issued via email, DI, relay output, Syslog and SNMP trap

● Compatible with industrial communication protocols such as EtherNet/IP, PROFINET, CC-Link IE and DNP 3.0

● IP40 housing design, -40˚C ~ 75˚C wide operating temperature

● International safety certifications such as UL 61010, IEC 62368-1, CE, FCC and RCM
